SERIE PLUS

22 kW no cable

EVPLUS22S

Name: CABUR EVPLUS22S charging stations for electric cars
SKU: EVPLUS22S
Price: 559.00 EUR
Availability: InStock

Cabur EVPLUS22S 22kW no cable PLUS SERIES 22kW no cable

Original price was: €2.899,00.Current price is: €559,00. + VAT

PCS PER PACK1

In stock

EV charger Plus series 22kW with type 2 plug

Stylish and compact design

Charging Mode: MODE 3, with type 2 socket (CASE B)

Connector standard Type 2

WI-FI connectivity in Client or Access Point mode

Start Charging with RFID card or via OCPP1.6J

Web App configuration management

DC Earth Leakage Protection 6mA

Integrated Meter, MID certificate

Remote management via OCCP protocol

Wall or stand mounting

PDF

DATA SHEET
ACCESSORIES
DOWNLOAD
OVERVIEW
EV Smart Charger

Additional information

Series	PLUS
Code	EVPLUS22S
Type	EVPLUS22S
HS code	85437090
PRODUCT INFORMATION
Power	3.5 – 22 kW
Charging Mode	MODE 3 CASE B (no cable)
Socket	Type 2
Dimensions (W x H x D)	355x650x150 mm
Weight	9.5 kg
Enclosure Material	PC+ASA (UL94-V0)
Cooling system	Integrated fan
Mounting	Wall / Stand
GENERAL FEATURES
Voltage	400V±15% (three phase) 230 V±15% (single phase)
Frequency	50/60Hz
Network Configuration	TN/TT/IT(3P+N+T o 3P+T) TN/TT/IT(1P+N+T o 2P+T)
Earth Leakage Protection	DC Leak (6 mA)
User interface	APP Control
Start/Stop Charge	RFID Card or via OCPP1.6J
Communications signals	LED Light belt (red, blue, green) Digital display LED indicators
Power metering	Power meter MID certificate
Additionals	Wifi (Client)/Wifi (Access Point) Hotspot RS485 (Pow.Managemnt ext meter) CAN (Load balancing)
Power Management	Dynamic (with external energy meter)
Dry contact	–
PhotoVoltaic integration	–
Communication Protocol	OCPP1.6J
Background Functions	WIFI system upgrade
Reports	Charge reports / Fault reports
Protections	Overcurrent protection; Overvoltage protection; Undervoltage protection; Relay over temperature protection; Socket or plug over temperature protection; CP fault protection; Relay adhesion protection
IP Degree	IP54
IK Protection degree (20°C)	IK8
Ambient Temperature	-25°C +50°C, forced ventilation
Operating Humidity	≤95%HR
Standards	IEC 61851-1; IEC 61851-21-2 (EMC class B); IEC 62196-2; EN 300 328 (RED WiFi 2.4GHz); EN 301 489-1/17 (RF-EMC); EN 62311 (Health)
APPROVALS AND MARKINGS

NOTES

For further information see PDF catalog

Cabur EVEVOFRAME EV SMART CHARGER Accessories

EVSTDFRAME

Fixing support on concrete plinth for EVSTD pole

EVSTD

Support pole for EV series EV smart chargers

EVDTSU6663PH

3-phase digital meter for load management (Power Management)

EVDDSU6661PH

Single-phase digital meter for load management (Power Management)

Cabur EVCP3T2B32AM0800 Accessories EV SMART CHARGER

EVCP1T2B32AM0500

Single phase cable for EV Smart Charger, 5m

EVRFIDCARD

RFID card for EVO PLU series EV charger activation

The Electric Vehicle Charging Station of Cabur’s EV Smart Charger line offer the most advanced solutions
and a complete range of products for all home building and medium-sized corporate needs.

Stylish and compact design
Available in Compact, Easy and Plus versions, adjustable power up to 7.4 kW or up to 22 kW
Charging Mode: MODE 3, with cable and cable holder (CASE C) or without cable (CASE B)
Connector standard Type 2
WI-FI connectivity in Client or Access Point mode
Start Charging with RFID cards or Web APP for EVPLUS Series
Status monitoring via Web APP
Web App configuration management
DC Earth Leakage Protection 6mA
MID Energy Meter
OCPP1.6J communication protocol
Wall or stand mounting
CE; DEKRA, TUV certifications

Installation and user manual

Other languages

Frequently Asked Questions

Bornes de recharge pour véhicules électriques

Énergies renouvelables, efficacité énergétique et maintenant mobilité électrique, des véhicules aux infrastructures, le marché évolue rapidement et devient de plus en plus green, de plus en plus durable.

Ce n’est pas le futur, c’est le présent et Cabur en fait partie.

Avec plus de 60 ans d’expérience dans le domaine des connexions électriques et entreprise leader depuis de nombreuses années dans le secteur des énergies renouvelables, CABUR est heureuse de présenter la nouvelle gamme EV Smart Charger, des bornes de recharge pour véhicules électriques.

La gamme offre la solution la plus avancée et la plus complète pour les besoins des particuliers, des copropriétés et des entreprises et institutions de taille moyenne. Les bornes de recharge pour véhicules électriques Cabur sont disponibles en version Compact avec 7,4 kW, Easy avec 22 kW avec et sans câble intégré et Plus avec 7,4 et 22 kW avec et sans câble intégré.

Avec un design original et élégant, les bornes EV Smart Charger de Cabur s’adaptent facilement aux différents besoins d’installation et d’utilisation et garantissent flexibilité, fonctions avancées, niveaux élevés de sécurité tant pour l’utilisateur que pour l’installateur.

Design raffiné et compact
Disponibles en versions Compact, Easy et Plus, de 7,4 à 22 kW
Mode de charge MODE 3, avec câble intégré et support de câble (CASE C) ou avec prise (CASE B)
Connecteur, prise TYPE 2
Connectivité WI-FI en Client ou Access Point
Démarrez le processus de charge via des cartes RFID ou une application Web dédiée
Possibilité de surveiller en permanence l’état de la charge via une application Web dédiée
Gestion des options de charge via une application Web dédiée
Protection différentielle contre les fuites DC 6mA pour les courants de défaut à la terre
Compteur certifié MID intégré
Gestion à distance via le protocole OCCP
Possibilité de montage mural ou sur pied
CE; certifications DEKRA, TUV

CUSTOMER CARE

e-mail: customercare@cabur.it
+39 019.58999.219
+39 019.58999.267

Télécharger le manuel d’installation et d’utilisation

IN THE SAME CATEGORY

EVPLUS7S

EV charger Plus series 7kW with type 2 plug

EVPLUS7C

EV charger Plus series 7kW with integrated cable

EVPLUS22S

EV charger Plus series 22kW with type 2 plug

EVPLUS22C

EV charger Plus series 22kW with integrated cable

EV-CLASSIC

Cabur EVNET BACK END EVO and PLUS SERIES

EVNET50

3-year license until 50 EVO and PLUS series stations

EVNET30

3-year license until 30 EVO and PLUS series stations

EVNET15

3-year license until 15 EVO and PLUS series stations

EVNET05

3-year license until 5 EVO and PLUS series stations

EVNET04

3-year license until 4 EVO and PLUS series stations

EVNET03

3-year license until 3 EVO and PLUS series stations

EVNET02

3-year license until 2 EVO and PLUS series stations

EVNET01

3-year license until 1 EVO and PLUS series station

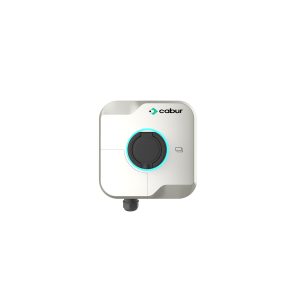

EVEVO7S

EV charger EVO series 7kW with type 2 plug

evo-en

EVEVO7C

EV charger EVO series 7kW with integrated cable

evo-en

EVEVO22S

EV charger EVO series 22kW with type 2 plug

evo-en

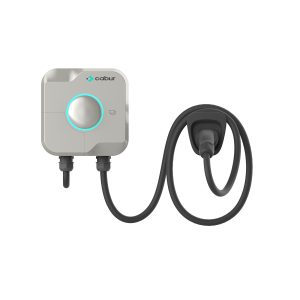

EVEVO22C
