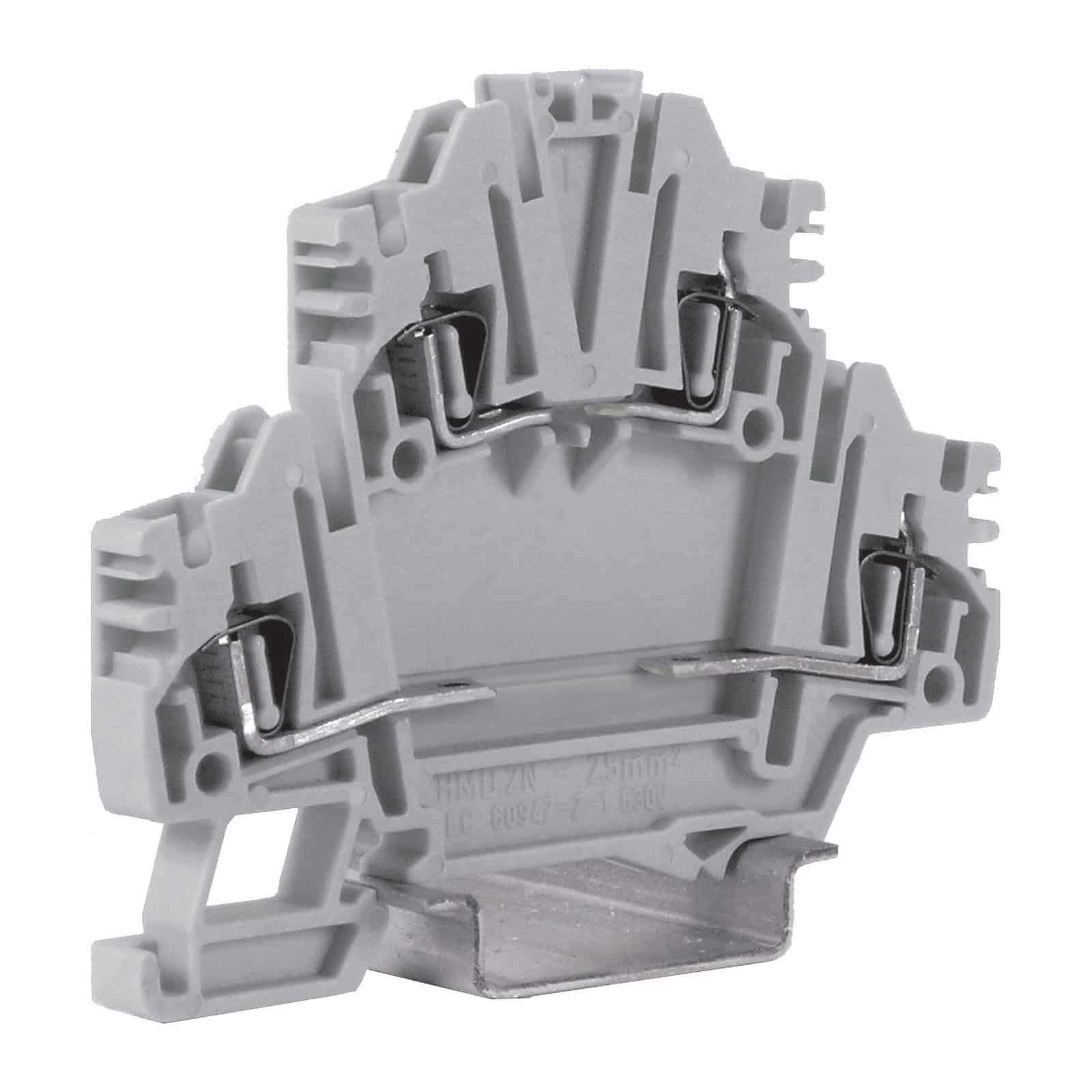

spring clamp terminal block with three 1N4007 diodes, 2.5mm², grey
| Series | HMD |
|---|---|
| Code | HD430GR |
| Type | HMD.2N/3DC/GR |
| HS code | 85369010 |
| Colour | grey |
| TECHNICAL FEATURES | |
| Function/Type | With 1 A diode |
| Rated cross-section | 2.5 mm² |
| Connecting capacity | |
| Flexible wire | 0.2-2.5 mm² |
| Rigid wire | 0.2-2.5 mm² |
| Wire with ferrule - ferrule type | 1.5 mm² – WP15/14 |
| Electrical characteristics according to IEC EN standard | |
| Maximum voltage AC/DC | 630 V |
| Maximum current (rated cross-section) | 1 A (1) |
| Caliber | B2 |
| Electrical characteristics according to UL Standard | |
| Electrical characteristics according to ATEX directive and IEC Ex standard | |
| Electrical characteristics according to IEC EN standard | |

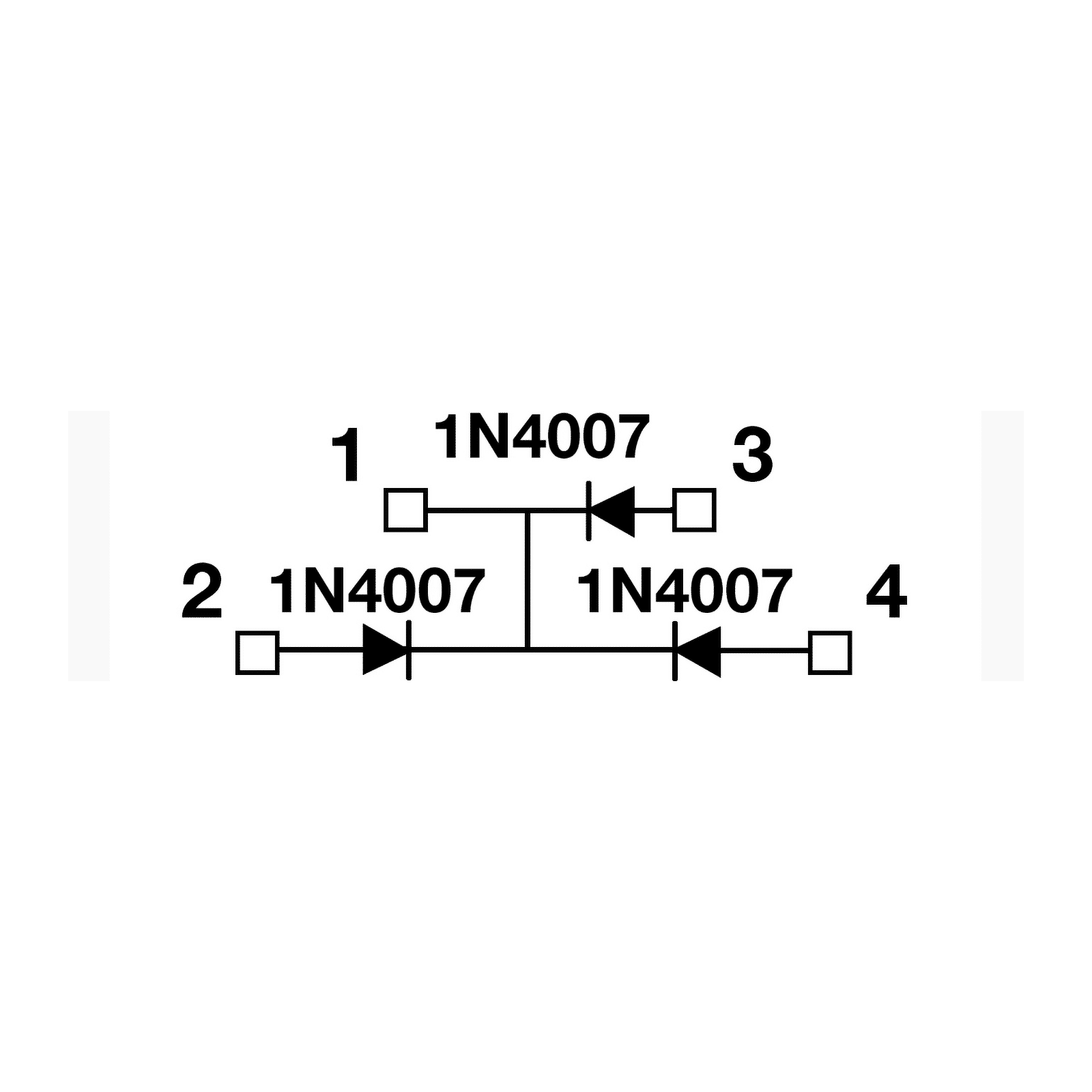

| Type of component | Diode (1N4007) |
| Rated voltage | 1000 Vrrm / 1.1 Vf |
| Rated impulse withstand voltage / pollution degree | 1 kV / 3 (1) |
| Insulation stripping length | 10 mm |
| Widht (pitch) | 5.2 mm |
| Length | 73 mm |
| Height mounted on TH35-7.5/TH35-15/G32 | 59 / 67 / – mm |
| Insulation material temperature index (EN 60216-1) | 130 °C |
| Plastic material | Polyamide UL94V-0 |
| ACCESSORIES | |
| End section | |
| Grey | HMD.1/PT/GR (cod. HD201GR) |
| Blue | – |
| Thickness | 1.5 mm |
| Cross-connection | |
| Model A) | PTC/03/… (cod. PTC03…) |
| Model B) | ‒ |
| Rated current carrying capacity IEC/ATEX | 24 A |
| Cross-connection identification strip | ‒ |
| Coloured partition plate | DFU/7/R (cod. DU07R) |
| Cross-connection barrier | DFM/500 (cod. DF500) |
| Test plug | ‒ |
| Modular test plug | SDH/7 (cod. DH007) |
| End section for modular test plug | SH7/PT (cod. DH701) |
| Marking | |
| Single marking tag | CNU/8/51 (cod. NU0851S) |
| Single marking tag for pitch insertion | – |
| End bracket | |
| TH35 screw type | BT/3 (cod. BT003) |
| TH35 snap-fit type | BTO (cod. BT007) |
| TH35 and G32 snap-fit type | BTU (cod. BT005) |
| DIN rail according to IEC 60715/TH35 | PR/3/.. |
| APPROVALS AND MARKINGS |    |
For further information see PDF catalog
For the creation of high harness volumes, for conductors from 0.2 to 25 mm2 and reduced current intensity values, CABUR proposes its range of spring-clamp terminal blocks.
To protect the clamping system, the insulating body includes a stopper which prevents the spring from going beyond the threshold of its elastic field, if is activated by inexpert hands.
Adequate sizing of the wire introduction chamber, responding to the requirements of the IEC 60947-1 Standard, guarantees insertion of any type of conductor of the nominal size, also butted with a terminal.
The connection that results from this, in relation to the technology adopted, has the maximum reliability and safety thanks to the quality of the materials used and to the particular conformation of the components needed for the purpose, avoiding damage to the strands of the conductors in the presence of unprepared flexible wires.
The wire entry is perpendicular to the installation surface determining a further reduction of times and costs of the wiring operations above all where the spaces are particularly limited. To connect together several contiguous elements, a practical and safe bridging system is available.
Terminal blocks with rated cross-sections of between 1.5 and 16 mm2 have the possibility of being connected together in the most disparate ways thanks to our exclusive “Easy Bridge” rapid connection system (PTC), which combines efficiency, rapidity and flexibility providing at the same time a exceptional economic result; these characteristics together with the resulting IPXXB intrinsic installation without the aid of further insulation protections (of wires, terminal blocks and parallel connections), guarantees better connectivity than that offered by the competitors.
MARKING SYSTEMS
In our marking system the same multiple numbering strip (SHZ) can be inserted on the sides of the terminal block or in the specific seats present in the upper part of the terminal block itself.
This means easy identification of each terminal block from every viewing angle within the electrical panel. The numbering can be done also with the single standard-type CNU/8 tags.
