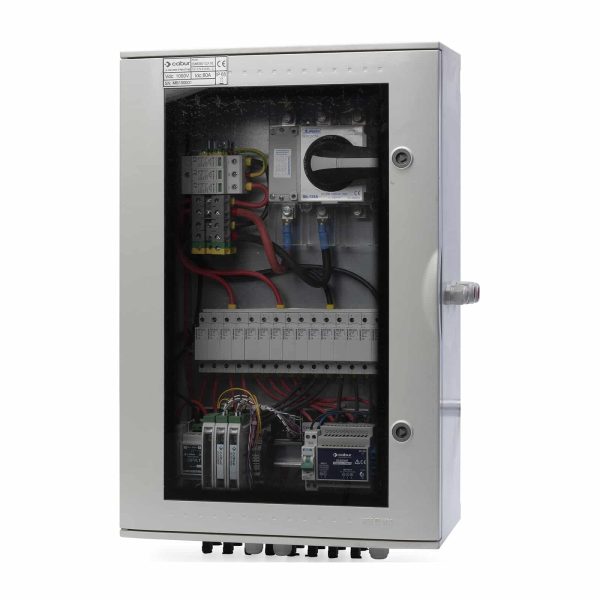

DC stringbox with monitoring circuit

ISM1601CA10

NEW_EMPTY

15.372,00 + VAT

PCS PER PACK1

Temporarily not available for online purchase. Contact our sales department.

Temporarily not available for online purchase. Contact our sales department.

Temporarily not available for online purchase. Contact our sales department.
DC stringbox with monitoring, IN 16_strings / 1_OUT 1000V standard
Up to 16 DC inputs from the Photovoltaic field
1 DC outputs to the Photovoltaic inverter
DC inputs based on Cabur Line 4 connectors
1 MPPT management
Suitable for 1000V systems
With 230 Vac release coil
With current and voltage strings monitoring
Modbus RTU comunication
With fuse holders on positive and negative circuits
CEI EN 61439-2 compliant

Additional information

Series
Code
Type
HS code
DC CIRCUIT
Number of Input (solar strings)
Number of Outputs MPPT
Max. Input Voltage
Max. Current for each string
Max. MPPT output current
Fuses
With fuse holder
Maximum rate
Type
Circuit breaker
Surge protective device
Nominal voltage Un
Protection level Up
Nominal discharge current 8/20 In
Input connection
Output connection
GENERAL DATA
Protection degree
Size (including connectors)
Standard compliancy
Release Coil
Data communication protocol

NOTES

(1) Our stringbox are sell without fuses, the choice of the correct size of fuse is mandatory by the customers.

For further information see PDF catalog

Cabur IS4SBLOCKN Accessories for correct installation
IS4SBLOCKN
Unlocking tool for photovoltaic connectors Cabur line 4
Cabur IS14240N FLY 4-6mm
IS14240N
Cabur Solar connector splicing male 4-6mm2
Cabur IS24241N Fly 4-6mm² connectors
IS24241N
Cabur Solar connector splicing female 4-6mm²

The new ISM photovoltaic panel series are suitable for monitoring the energy production of the plant in every single moment.
Thanks to the transducers is possible to monitor the string currents and the overall voltage.
Inside the panel the XCIO4 analogue converters allow to acquire the signals and information from the strings and to put them on the Modbus line.

To setup the system connection it is necessary to use the following Modbus addresses.
Default Modbus addresses:

  • • XCIO4IMB-1: STRINGS CURRENT 1-4 ID MODBUS 1
  • XCIO4IMB-2: STRINGS CURRENT 5-8 ID MODBUS 2
  • XCIO4VMB: PARALLEL VOLTAGE ID MODBUS 3

If the plant has more than one ISM panel, it will be necessary to increment the Modbus addresses of the additional devices, to avoid read conflicts (i.e. if we have a second ISM0801CA10:

ID MODBUS 3+1, ID MODBUS 3 + 2, ID MODBUS 3 + 3). The devices setup can be performed with CaburLab free software, for more information please contact our technical office.
