€572,00 + VAT
Temporarily not available for online purchase. Contact our sales department.
Temporarily not available for online purchase. Contact our sales department.

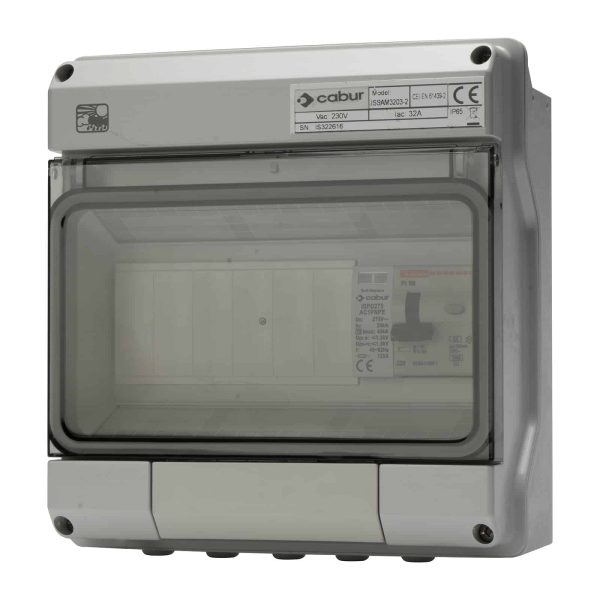

| Series | ISS |
|---|---|
| Code | ISS00MNNA03320 |
| Type | ISS00MNNA03320 |
| HS code | 85372091 |
| AC CIRCUIT | |
| Max. Input Voltage | 230 (V) |
| Max. input current | 32 (A) |
| Nominal frequency | 50 (Hz) |
| Input connection | circuit breaker terminals |
| Output connection | circuit breaker terminals |
| Thermal - magnetic circuit breaker | |
| Type | 1P+N |
| Flow Rate | 32 (A) |
| Tripping curve | C |
| Short circuit current | 10 (kA) |
| Residual-current circuit breaker | |
| Class | A |
| Sensitivity | 0.3 (A) |
| Surge protective device | |
| Nominal voltage Un | 230 (V) |
| Protection level Up | 1500 (V) |
| Nominal discharge current 8/20 In | 20 (kA) |
| GENERAL DATA | |
| Protection degree | IP65 |
| Size (including connectors) | 275x111x200 (mm) |
| Standard compliancy | CEI EN 61439-2 |
For further information see PDF catalog
Cabur Photovoltaic Stringboxes are composed by the
following main parts:
Every cabur photovoltaic electrical panel is provided together with all the documentation necessary to certify the photovoltaic system:
The declaration of conformity of the photovoltaic electrical
panel can be provided on demand.
Advantages of the StringBox series
Cabur is able to design string box on demand in compliance with the standard.
For information, please contact our sales network.
The choice of a particular type of stringboxes is left to the customer.
This choice depends on the configuration of the plant, the inverter type and the power of the photovoltaic systems.
