| Series | CWR |
|---|---|
| Code | X766822S |
| Type | CWRE7-0822-S |
| HS code | 85364190 |
| INPUT TECHNICAL DATA | |
| Input rated voltage | 24 Vdc ±10% |
| Pull in / drop out voltage type | 19.2 V / 9 V |
| Current consumption | 25 mA ±10% at 24 Vdc |
| Turn ON / OFF time | 8 ms / 5 ms |

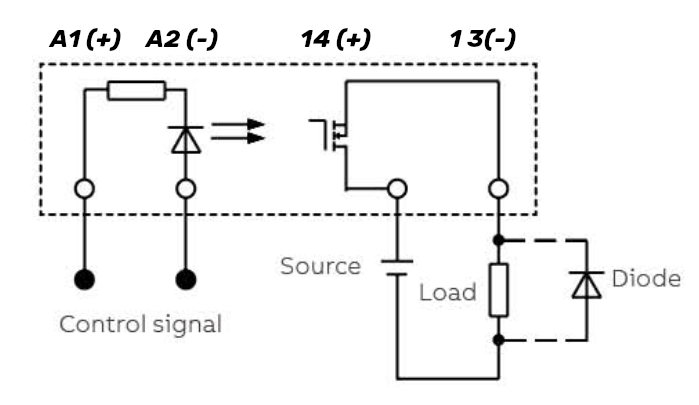

| Protection circuit | Free-wheel diode, Reverse polarity |
| Connection terminal | 2.5 mm² (spring) |
| Input channels | 1 pluggable |
| OUTPUT TECHNICAL DATA | |
| Contact type | mosfet |
| Output voltage | 3…30 Vdc |
| Nominal current | 4 A (3 … 28 Vdc) |
| Connection type | |
| GENERAL TECHNICAL DATA | |
| Operating temperature range | -20…+70°C |
| Input / output isolation | 2.5 kVac / 60 s |
| Protection degree | IP 20 |
| Overvoltage category / pollution degree | II / 2 |
| Status indication | LED "Input" |
| Housing material | UL94V-0 plastic material |
| Dimensions (LxHxD) | 6.2x89x77 mm |
| Approximate weight | 35 g |
| Continuous current | 48 A for 10 ms |
| Mounting information | on a rail, side by side |
| Leakage current with signal 0 | 100 µA |
| Min applicable load | 0.02 A |
| ACCESSORIES | |
| Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
| Marking tag | NUPUTUK50 |
| Plugin jumper | CWBK7-0813 (20 poles) |
| APPROVALS AND MARKINGS |    |
For further information see PDF catalog
