with negative command
LED testing modules

XCLT16AC

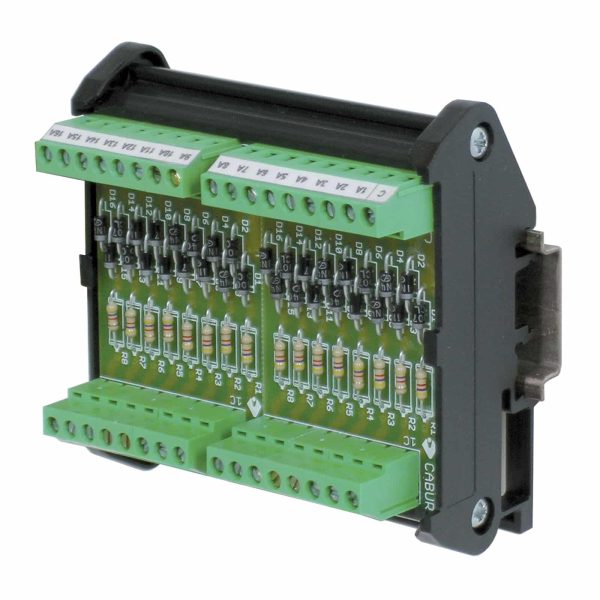

Cabur XCLT16AC LED testing modules With negative command
Cabur XCLT16AC LED testing modules With negative command

€84.40 + VAT

PCS PER PACK1

In stock

In stock

LED testing modules common negative, 16 poles

Integrated limit resistors
Suitable only for LEDs without limitation resistors or internal adapter circuit
Compact dimensions
PDF

Additional information

Series
Code
Type
HS code
GENERAL TECHNICAL DATA
Number of poles
Version
Input rated voltage
Input rated current
Operating temperature range
Overvoltage category / pollution degree
Protection degree
Connection terminal
Dimensions (LxHxD)
Housing material
Mounting information
ACCESSORIES
Mounting rail (IEC60715/TH35-7.5)
Mounting rail (IEC60715/TH35-15)
APPROVALS AND MARKINGS

NOTES

(1) LEDs light up, with a negative command on the common terminal
The module is suitable only for simple LEDs, not for LED lamps, which are equipped with its own internal electronic circuit to adjust the nominal voltage.
The module is equipped with 1N4007 diodes and 4.7 kΩ 1/4 W resistors

For further information see PDF catalog
