Cabur: new capacitive buffer modules CSB series
The new series of capacitive buffer modules CSB series expands Cabur solutions to ensure service continuity.
November 20, 2024
No Comments
€107.60 + VAT
In stock
In stock

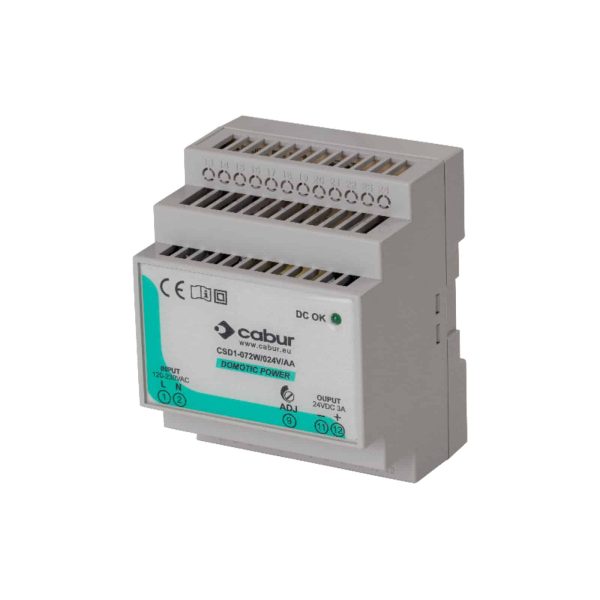

Single phase power supply IN: 120–230 Vac / OUT: 24 Vdc 3 A
| Series | Domotic Power |
|---|---|
| Code | XCSD1072W024VAA |
| Type | CSD1-072W/024V/AA |
| HS code | 85044083 |
| INPUT TECHNICAL DATA | |
| Input rated voltage | 120–230 Vac |
| Input voltage AC | 85…264 Vac |
| Input voltage DC | 100…370 Vdc (derating Uin |
| Frequency | 47…63 Hz |
| Current consumption | 1.17 A (120 Vac) / 0.71 A (230 Vac) |
| Inrush peak current | 15 A |
| Power factor | > 0.6 |
| Internal protection fuse | T 2 A |
| External protection on AC line | MT: C-3 A / Fuse: T-3 A |
| OUTPUT TECHNICAL DATA | |
| Output voltage range | 24 Vdc ±1% |
| Output adjustable range | 23.5… 27.5 Vdc |
| Continuous current | 3 A at 55°C |
| Overload limiting | 4.5 A |
| Ripple @ nominal ratings | 50 mVpp |
| Hold up time | 12 ms (120 Vac) / 20 ms (230 Vac) |
| Status indication | LED "DC OK" |
| Parallel connection | possible |
| Redundant parallel connection | possible with external ORing diode |
| GENERAL TECHNICAL DATA | |
| Efficiency | 89% (230 Vac) |
| Dissipated power | 9.6 W (120 Vac) / 7.9 W (230 Vac) |
| Operating temperature range | –20…+70°C (derating -2.6 W >55°C) |
| Input / output isolation | 3 KVac / 60 s (SELV output) |
| Input / ground isolation | class 2, without PE link |
| Output / ground isolation | class 2 without PE connection |
| Standard / approvals | EN 60950-1, EN 62368-1 |
| EMC Standard | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
| Overvoltage category / pollution degree | II / 2 |
| Protection degree | IP 20 |
| Connection terminal | 2.5 mm² / 2.5 mm² |
| Housing material | UL94V-0 plastic material |
| Dimensions (LxHxD) | 71x62x90 mm |
| Approximate weight | 229 g |
| Mounting information | vertical on a rail, 10 mm from adjacent components |
| ACCESSORIES | |
| Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
| Alarm contact | no |
| Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
| APPROVALS AND MARKINGS |     |
For further information see PDF catalog
Single-phase switching power supply with power up to 70W for use in civil and industrial automation applications. The technical and design characteristics of the housing, with standard modular DIN measurements for installation in control units were planned to optimise use in home automation. The performance level and compact size also make it an excellent solution for electrical panels and shallow containers.

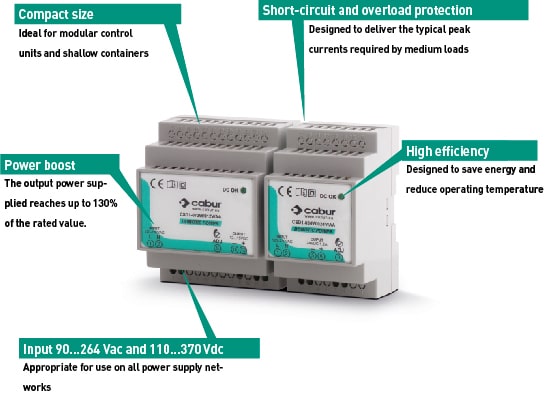

High output and a contained working temperature support energy savings and longer component life.
Suggested uses
Main features
The new series of capacitive buffer modules CSB series expands Cabur solutions to ensure service continuity.
The new devices are specifically designed for the industrial applications and complete the current range of unmanaged Ethernet switches for DIN-rail.
These are 1.2Ah, 3.4Ah, 7.2Ah and 12Ah battery module holders.
