€202.80 + VAT
In stock
In stock
| Series | EASY POWER LINE |
|---|---|
| Code | XCSE3240W024VAA |

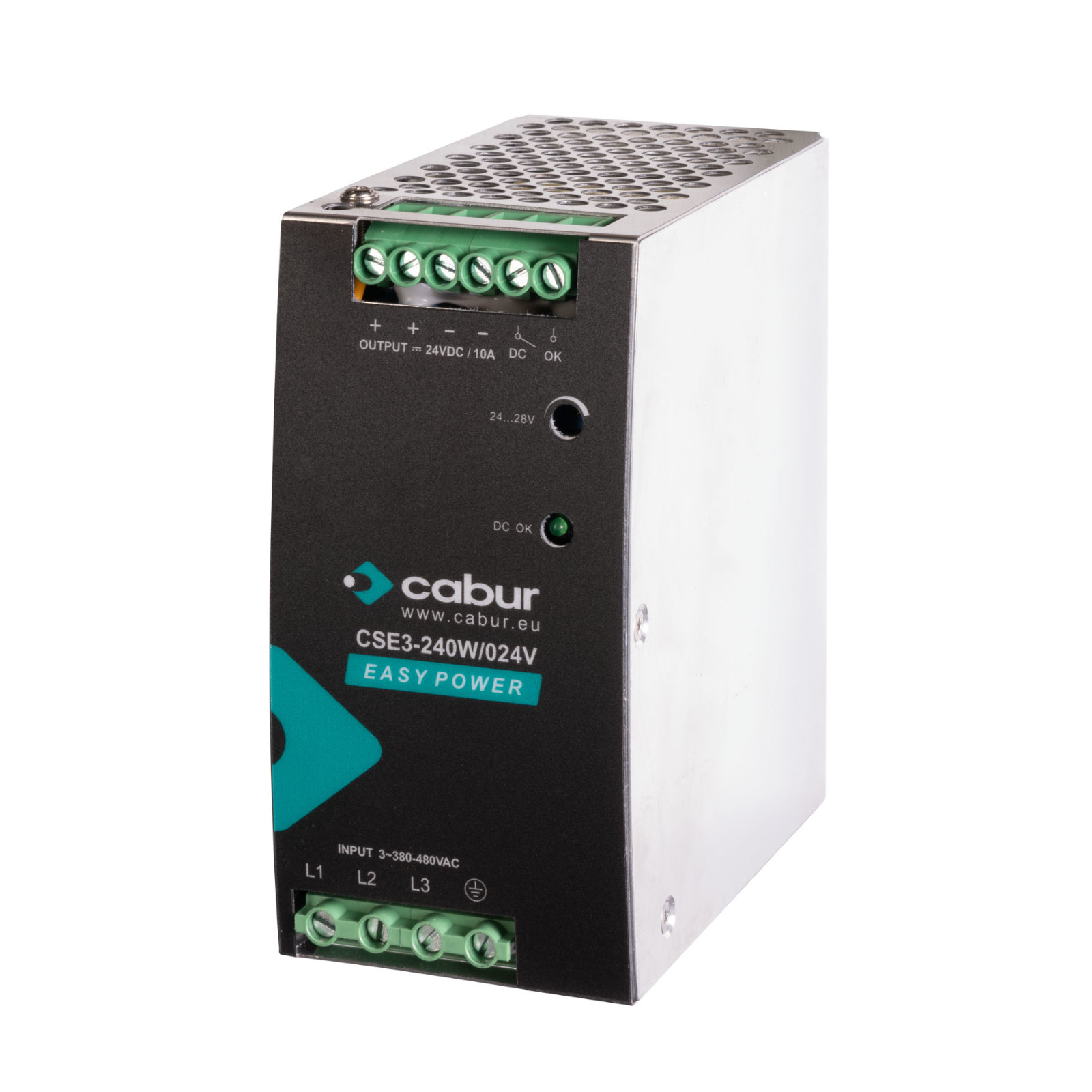

| Type | CSE3-240W/024V/AA |
| HS code | 85044083, 8504401400 |
| INPUT TECHNICAL DATA | |
| Input rated voltage | 3x 400–500Vac |
| Input voltage AC | 340…550 Vac |
| Input voltage DC | 480…780 Vdc |
| Frequency | 47…63 Hz |
| Current consumption | 1.5 A (400 Vac) / 1.4 A (500 Vac) |
| Inrush peak current | 50 A (400 Vac) |
| Power factor | > 0.53 (400 Vac) / > 0.43 (500 Vac) |
| Internal protection fuse | T 4 A |
| External protection on AC line | MCB: C-4 A / Fuse: T 4 A |
| OUTPUT TECHNICAL DATA | |
| Output voltage range | 24 Vdc |
| Output adjustable range | 24…28 Vdc |
| Continuous current | 10.0 A |
| Overload limiting | 10 A for >3 s |
| Short circuit peak current | 20 A for >3 s |
| Ripple @ nominal ratings | 120 mVpp |
| Hold up time | 20 ms (400 Vac) / 40 ms (500 Vac) |
| Status indication | LED "DC OK" |
| Alarm contact | dry contact, max. 1 A |
| Parallel connection | — |
| Redundant parallel connection | possible with external ORing diode |
| GENERAL TECHNICAL DATA | |
| Efficiency | 90.5% (400 Vac) / 92% (500 Vac) |
| Dissipated power | 24 W (400 Vac) / 21 W (500 Vac) |
| Operating temperature range | -30°C…+70°C (derating -12 W/°C >60°C) |
| Input / output isolation | 4.7 KVac / 60 s |
| Input / ground isolation | 2.4 kVac / 60 s |
| Output / ground isolation | 0.5 kVac / 60 s |
| Standard / approvals | EN 62368-1, UL61010 |
| EMC Standard | EN 55032, EN/IEC 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11 |
| Overvoltage category / pollution degree | II / 2 |
| Protection degree | IP 20 |
| Connection terminal | 4 mm² / 4 mm² |
| Housing material | aluminium, steel |
| Dimensions (LxHxD) | 63 x 125 x 113.5 mm |
| Approximate weight | 0.97 Kg |
| Mounting information | vertical on a rail, distance from adjacent components: 40 mm top and bottom, 10 mm left and right |
| ACCESSORIES | |
| Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
| Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
| APPROVALS AND MARKINGS |   |
For further information see PDF catalog
The new CSE2 range is part of the Easy Power series, which includes industrial power supplies designed for standard applications with an excellent price/performance ratio.
